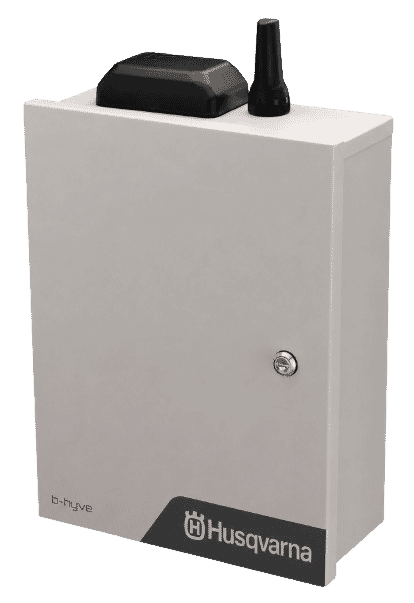

High Station Count Two-wire Controller

Name: High Station Count Two-wire Controller
SKU: 04554
Availability: InStock

$3,160.89MSRP

In stock

UPC: 845631005884 MPN: 04554 Categories: Control & Monitoring Solutions, Smart Controllers Commercial Tags: B-hyve Pro, Connected, Controller, HSC, Smart, Wi-Fi Rebates:

Description

The High Station Count (HSC) commercial irrigation controller brings a range of connectivity to B-hyve, the #1 irrigation platform in the world. The HSC provides WeatherSense programming with remote monitoring and control for projects large and small.

The HSC and B-hyve can provide water managers with total control over programming whether they want fully automatic daily adjustments with WeatherSense programming, traditional programming, or somewhere in between. The HSC can control up to 63 Two-wire stations and power two stations simultaneously. The convenient AC Two-wire design allows for station expansion using field decoders and standard solenoids.

HSC Features and Benefits

Built-in Wi-Fi (2.4 GHz and 5 GHz), Bluetooth, and Ethernet for easy connectivity
Optional cellular module (sold separately) allows for remote operation when a local area network is not available
The large full-color display provides key information at the device
Two Master valve/pump circuits ensure you have the hydraulic control you need.
Non-Volatile memory stores programming for watering after a power outage
Manual watering by program or station so you only water the areas you want
Master valve/pump on/off by station for greater control over watering

B-hyve Features and Benefits

WeatherSense programming can issue daily programming adjustments which can provide up to 30% in water savings
Built-in irrigation audit allows for faster system audits and improved water savings
Delay Watering up to 32 days, perfect for big events or big storms
Seasonally adjust irrigation by program with “Watering Budget” to optimize irrigation without altering the original program.

Video

Additional information

Weight	16 lbs
Dimensions	21.13 × 14.13 × 8 in
B-hyve Connected Device	Yes
Bluetooth Compatibility	5
Bluetooth Range	150 Feet
Cable/Wire Type	12 AWG
Certifications	EPA WaterSense, FCC, IP 68, UL
EPA WaterSense Approved	Yes
Hub Included	Built in
Mounting Location	Outdoor
P/MV output (24 VAC)	0.32 A
Programming Schedule	Days of week, watering intervals, odd/even days, Smart
Pump Start Relay	2 Terminal
Smart / Web Access	B-hyve Pro or B-hyve
Smart Home Compatibility	Alexa, Google
Solenoid Holding Current	0.56 A @ 24 VAC
Station Count	63
Station output (24 VAC)	0.56 A
Transformer input	100-240 V AC
Transformer output	3.3 A
Wi-Fi Bandwidth	2.4 GHz, 5 GHz
Wi-Fi Range	2.4 GHz – 60 to 820 ft, 5 GHz – 190 to 460 ft

Certifications

INPUT AC 120V 0.2A

OUTPUT AC 26V 3A
0–70° C AT 6000 CYCLES
CLASS 2 TRANSFORMER USED TRANSFOMER DE CLASSE 2 UTILISÉ
CERTIFIED TO CAN/CSA C22.2 NO 205-12 ANSI/UL 1951
FCC ID: ML6HSC
IC: 3330A-HSC
HVIN: HSC
ASSEMBLED IN THE US
WITH GLOBAL MATERIALS
ASSEMBLÉ AUX ÉTATS˜UNIS AVEC
DU MATÉRIEL INTERNATIONAL

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Cet appareil est conforme à la partie 15 des règlements de la FCC. Le fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne doit pas causer d’interférences nuisibles; (2) cet appareil doit accepter toutes les interférences reçues, y compris celles pouvant causer un fonctionnement non souhaité.
