HRC 410 LED Codes

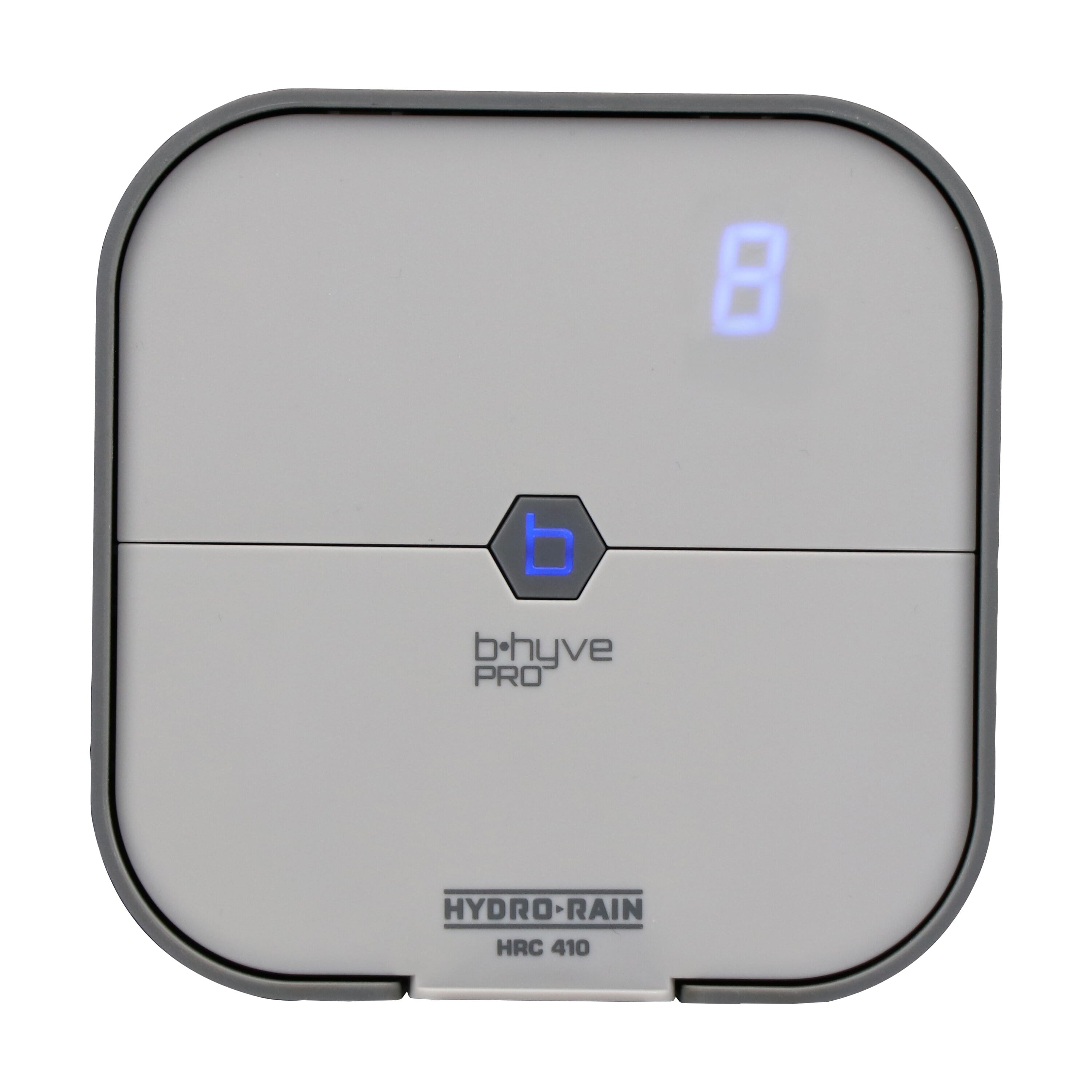

Color and 8 segment LCD definitions: #
| “b” Button | Panel (top right) | Definition |
|---|---|---|
| Flashing Blue | P | Pairing mode enabled |
| Solid White | Nothing (no LED code) | Idle mode
Waiting for program or command |
| Flashing White | Clockwise trailing | Connecting to Wi-Fi or Server |
| Green | Station Solid | Station is currently watering |
| Yellow | D | Currently as a rain delay |
| Flashing Red, white, and Blue | Clockwise Trailing | Identify mode has been turned on |
| Flashing Red | Nothing (no LED code) | Timer is Off |
| Red | F then Station | Indicates a fault on the zone that flashes |
